Below is a list of tooling that is onsite at our Salt Lake City Utah location. Please note our tooling is not available for sale or rental. If tooling is needed, please contact us to arrange technician to accompany and assist with equipment.
Gulfstream Dassault Falcon Hawker Bombardier Cessna/Citation Embraer General Use Equipment Wing Jacks
Axle Jack Adapter
P/N: DGSAJA-1S-101
GSE: GSE3200486
Use: This adapter is used to axle jack Gulfstream GIV, G400, G450, G350 and G450 aircraft.
Compatibility: This unit works on all s/n aircraft.
Axle Jack Adapter
P/N: DA1321018-103
GSE: GSE3200033, GSE50214
Use: This adapter is used to axle jack Gulfstream GV, G500 and G550 aircraft.
Compatibility: This unit works on all s/n aircraft.

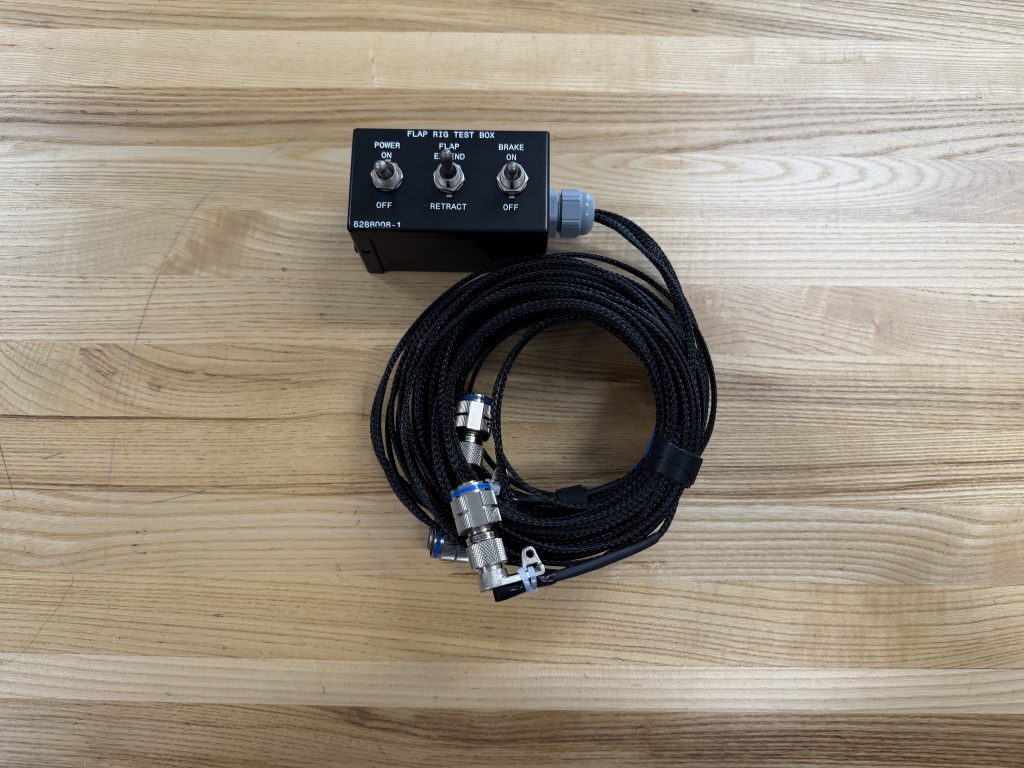

Flap Asymmetry Test Box
P/N: SJA-3
Note: Equivalent to P/N: 1159SEAV20315-3
GSE:GSE2700481
Use: This Flap Asymmetry Test Box is used to test/adjust the flap asymmetry system. Kit contents include test box, harness, drive shaft tool, #30 clecos and cleco plyers.
Compatabilty: Gulfstream GII, GIII and GIV aircraft.
Alternator / Converter Test Harness
P/N: 1159SEAV40138
P/N: 1159SEAV40242-901
Use: Determines if a converter or its associated alternator is faulted by slaving the APU alternator output into the left or right converter. A failure of a converter to come online would most probably indicate a faulted converter. A succesfull test would most probably indicate a faulted engine alternator.
Compatabilty: Gulfstream GIV aircraft with GTCP36-100G APU installed.
Spline Adapter Removal Tool
P/N: 1159SEP30101-3
Use: This tool is required to remove the spline adapter from the engine/APU gearbox during alternator replacement.
Compatibility: Gulfstream GIV aircraft.
Gulfstream Flight Control Rig Pin Kit
P/N: 1159GSE50103-1
Use: Flight control rigging.
Compatabilty: Gulfstream GIV, G450, GV, G550, G650
G200 Jack Pads
GIV – G450 Jack Pads
GV – G550 Jack Pads
Spanner Wrench
P/N:
GSE: ST-905-072
Use: Used to removed/install the nose gear axle fitting on GII, GIII and GIV series aircraft.
Adapter Wrench
P/N:
GSE: M1304-2-71
Use: Used to remove/install the nose gear drag brace spherical bearing on large cabin Gulfstream aircraft.
Gulfstream Universal Throwboard
P/N: 1159SEM20045-1
GSE: GSE2700124
Use: Used for checking throws on flight control surfaces.
Integrated Drive Generator Servicing Unit
Container P/N: 06-5022-6800
Fitting P/N: V2506J06-003
Use: Servicing Integrated Drive Generators
Gulfstream Air Data Adapters
P/N: (4x) CSA50004-4-4
Use: Perform pitot/static tests on Gulfstream series aircraft.
Falcon Air Data Adapters
P/N: (x2) CSA50520-4
Use: Perform pitot/static checks on Falcon series aircraft.
Falcon 2000 Thrust Reverser Test Box
P/N: F2TR7833-30 (Click here for more information)
Use: Used for troubleshooting the Thrust Reverser Latch Box Switches and harness
Falcon Strut Service Tool
GSE: F21878100-2
Main Gear Axle Jack Adapter
P/N: FMGJA-100 (Click here for more information)
GSE: FGFB932304 or H47786
Use: This adapter is used to axle jack Falcon 50, 900 and 2000 series aircraft.
GSE: FGFB932304 or H47786
Nose Gear Axle Jack Adapter
P/N: FNGJA (Click here for more information)
GSE: F46167-100 or FGFB932303
Use: This adapter is used to axle jack Falcon 50, 900 and 2000 series aircraft.
90-Pin Breakout Box
P/N: HAC-1093-1A (Click here for more information)
GSE: AE1093-1A
Use: Provides access to electrical circuits for required tests and checks on Falcon series aircraft.
Landing Gear Proximity Switch Tester
P/N: F900PST-3200 (Click here for more information)
GSE: F218362001 or FGFB93025
Use: Test the functionality of landing gear proximity switches on Falcon series aircraft.
Axle Nut Socket
P/N: FS2000.8 (Click here for more information)
Use: Removing nose and main axle nuts for wheel removal/installation.
Axle Nut Socket
P/N: FS2000.6 (Click here for more information)
Use: Removing nose and main axle nuts for wheel removal/installation.
Falcon Jack Pads
P/N: TF50B07104
Use: Used for jacking Dassault Falcon series aircraft.
Falcon Ground/Flight Simulator Test Box
P/N: F2000-3260-27 (Click here for more information)
GSE: F2MA932601A1 / TO-32-436
Use: Permits ground/ flight simulation of individual landing gear proximity sensors on Falcon 900 and 2000 series aircraft.
Spring Loaded Fairing Tool
P/N: FLSF (Click here for more information)
GSE: TF50B55301A
Use: Used to remove and install the horizontal stabilizer spring fairing on Falcon series aircraft.
Engine Conditioning Trend Monitor Kit
P/N: 831702-19
Use: Used for downloading engine DEEC’s
Jack Pads
Main Pad P/N: 0025-0006116-9
Tail Pad P/N: 0025-0006108
Use – Used to wing jack Hawker Series aircraft.
Wrench, Wheel Retaining Nut
P/N: 25Y725A
Use: Used for removal and installation of Hawker MLG wheels.
Wrench, Maxaret Retaining Nut
P/N: 25Y257A
Use: Used for removal and installation of Hawker MLG Maxarets.
Challenger (All Models) Jack Pads
GSE: 07-10-01
P/N: (x3) – G600-070001-1
Use: Used to wing jack Challenger series aircraft.
Global (All Models) Jack Pads
GSE: 07X-10-01
P/N: (x3) – G700-071001-1
Use: Used to wing jack Global series aircraft.
Global Special Wrench
P/N: 57759A0000-01
Use: Used in disassembly of the nose landing gear assembly and replacement of NWS actuators on Global series aircraft.
Global Nose Wheel Steering Pin
P/N: 14-6867-6000
Use: Used for centering nose wheel steering system for rigging on Global series aircraft.
Challenger 300/350 Air Data Adapters
GSE: GSE 34C-10-02
P/N: (x2) Adapter CSA95264-4-4
P/N: (x1) Adapter CSA75700-4
Use: Perform pitot/static checks on Challenger 300/350 series aircraft.
Challenger 300/350 Standby Pitot Probe Leveling Fixture
GSE: 34C-11-03
P/N: G1003411003-001
Use: Perform leveling check of the standby pitot probe.
Lear Main Gear Axle Jack Adapter
P/N: Z-2639
Use: This adapter is used to axle jack the main gear on Lear model aircraft.
Lear Nose Gear Axle Jack Adapter
P/N: Z-2641
Use: This adapter is used to axle jack the nose gear on Lear model aircraft.
Lear Jack Pads
Main P/N: 2572006-8 (2ea pads p/n 2572006-3)
Nose P/N: 2370102-4
Use: Used to wing jack Lear model aircraft.
Global NWS NVM Interface Cable
P/N: G700-323203-1
GSE: GSE 32X-32-03
Use: Connects between the PMAT and NWS SCU to download the NWS SCU Non-Volitile Memory.
APU Hoist for Challenger 600 Series Aircraft
Kit P/N: G604-490001-77
Use: For removal and installation of APU on Challenger 600 series aircraft.
Challenger 300/350 Fishpole Hoist
Fishpole GSE P/N: 49C-00-01
Protective Sleeve GSE P/N: 49C-00-02
Fishpole P/N: PF51-033-1
Use: For removal and installation of APU on Challenger 300/350 series aircraft.

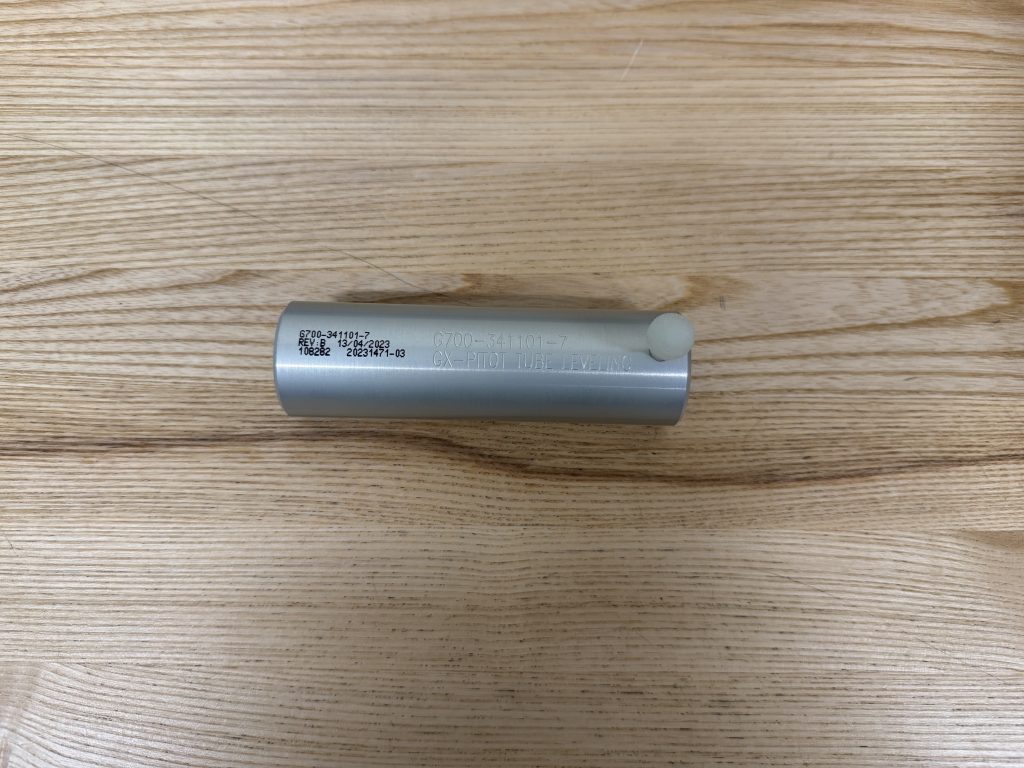

Bombardier Pitot Tube Leveling Adapter
P/N: G700-341101-7
Use: For checking angle on Global/Challenger pitot probes.
Global 5000/6000 Air Data Adapters
P/N: (4x) CSA95264-4-4
Use: Perform pitot/static tests on Global 5000/6000 series aircraft.

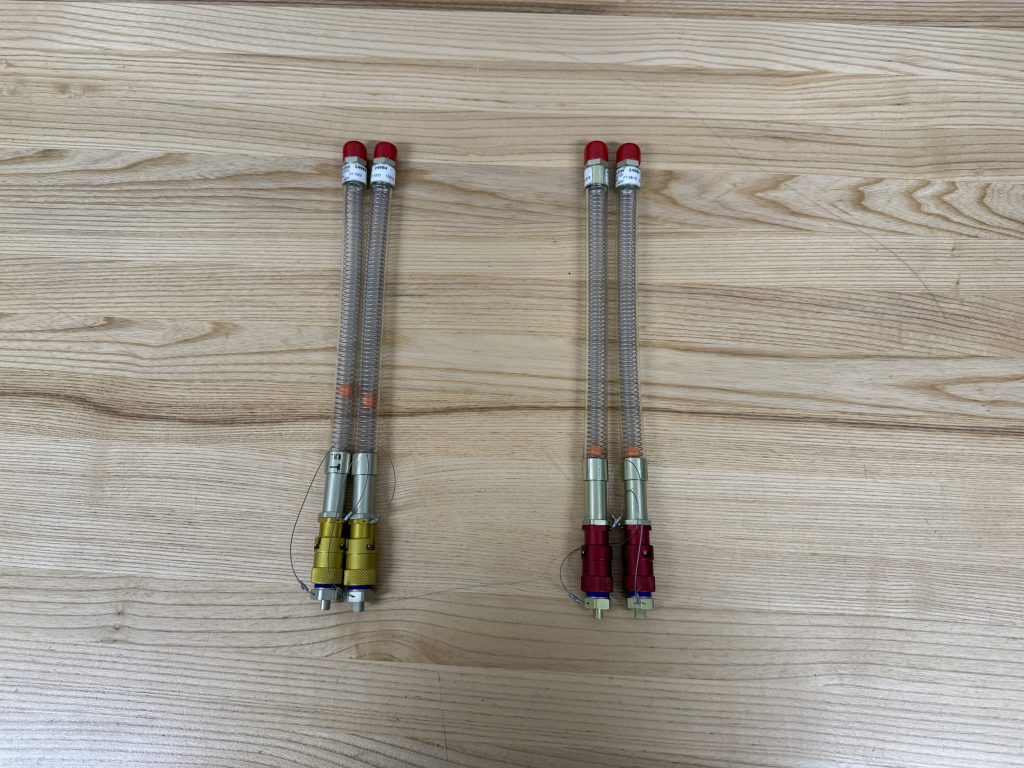

Bombardier Purging Hose Assemblies (2 Pin and 3 Pin)
P/N: (2ea ) 50017A42-6-0120
P/N: (2ea ) 50017A43-6-0120
Use: To purge the lines of the pitot-static system.
Bombardier Global 7500 MLG Axle Nut Socket
P/N: T46125
SGSE Reference Number: 32X78K-11-10
Use: To remove and install the MLG axle nut on Global 7500 Aircraft.
Challenger 600 Series Air Data Adapters
GSE: 34−10−12
P/N: (x2) Adapter CSA60404-4-4
P/N: (x1) Adapter CSA75700-4
Use: Perform pitot/static checks on Challenger 600 series aircraft.
Global Series APU Fishing Pole Hoist
GSE: 20X-00-01
P/N:PF51-003
USE: Used for Removal and Installation of Global series APU’s.
Global Series APU Lifting Fixture
GSE: 49X-10-01
P/N: 5838212-1
USE: Used for Removal and Installation of Global series APU’s.
DIGITAL IMPEDANCE METER
GSE: 36−23−01
P/N: 252
Use: Used for measuring conductance to verify health of bleed loops
LCR METER
GSE: 36X−12−0
P/N: 880
Use: Used to check the impedance of a bleed loop to determine health of the loop
CONNECTOR REPAIR TOOL KIT
GSE: 36C−21−02
P/N: TZ−6368
Use: To repair Bleed Loop sensing element connector
BLEED LOOP CONNECTOR PIN CLEANING TOOL SET
GSE: 36C−21−03
P/N: TL35491
Use: To clean the contact pin in the bleed loop connector
Variable Stator Vane Adaptor
P/N: 8600429
Use: Used to move the VSV Mechanism on Global Series Aircraft
Citation CE750 Interface Cable
P/N: 9555024-1
Use: Used for engine trend data downloading and AHRS configuration programming on the CE750 series aircraft.
CE560 Jack Pads
P/N: Numerous
Use: Used to wing jack CE560 series aircraft
CE560 Free-Play Kit
P/N:
Use: Used for checking flight control free-play.
Pratt & Whitney Engine Monitoring Test Set
P/N: PWC67398
Use: Used to comply with engine trend monitoring downloads
CE560 Brake Bleed Kit
P/N:
Use: Used for bleeding brake systems on CE560 series aircraft
CE560 Main Entrance Door Rigging / Adjustment Kit
P/N:
Use: Used for adjusting and rigging the main entrance door on CE560
CE680 / CE750 Jack Pads
Kit P/N: K-2799
Nose Pad P/N: R-1808
Main Pad P/N: R-1807
Use: Used to wing jack CE680 and CE750 series aircraft.
Main Gear Axle Jack Adapter
P/N K-2730 (02-7833-0110)
Use: Used to single point jack the main landing gear on the CE750 series aircraft.
Nose Gear Axle Jack Adapter
P/N K-2728
Use: Used to single point jack the nose landing gear on the CE750 series aircraft.
Citation CE680(A) DPHM Engine Download Kit
P/N: PWC40521
Contains Cables: PWC63051 (AC Interface), PWC62174 (RS422 to Computer), PWC89892 (Dual Channel RS422 To USB)
Use: DPHM Cables for PW306C and PW306D Engines
Citation CE700 Jack Pads
Nose Pad P/N: R-1808
Main Pad P/N: R-3053
Use: Used to wing jack CE700 series aircraft.
Citation CE680(A) and CE700 NLG Actuator Place Holder
P/N: ALSE00149338
Use: Used as a place holder for the NLG actuator on CE680(A) and CE700 series aircraft.
CE680-680A Accessory Gearbox Seal Puller Kit
Consists of P/N’s: PWC62452, PWC62453, PWC48468, PWC62454, PWC62455, PWC62450, PWC40535, PWC62451, PWC61155, PWC61052, PWC48150, PWC48469, PWC48149, PWC61951
Use: Used for removal and installation of Pratt and Whitney 306C and 306D Accessory Gearbox Carbon Seals.
CE-680A Nose and Main Gear Simulator Test Boxes
Nose Box P/N: 6988012-7
2ea Main Box P/N: 6988012-10
Use: For simulating an in air or on ground situation for the Cessna Latitude.
CE-700 Nose and Main Gear Simulator Test Box
Nose Box P/N: 6988012-7
Main Box P/N: 8288001-1
Use: For simulating an in air or on ground situation for the Cessna Longitude
Phenom 300 Jack Pads
Kit p/n: AGE-04890-401
Main p/n: AGE-04944-001
Nose p/n: AGE-04511-401
Use: Used to wing jack the Phenom 300 series aircraft.
Phenom 300 Air Data Adapters
GSE: 011
P/N: (x2) CSAP300HTR4-4-4-4
P/N: (x1) CSA50054-4
Use: Perform pitot/static/AOA checks on Phenom 300 aircraft.
Phenom Hydraulic Servicing Unit
Fluid: MIL-PRF-87257
GSE:
Container P/N: 06-5022-6800
Fitting P/N: KHC-4017
Use: Servicing the hydraulic reservoir on Phenom 300 series aircraft.
Fixture – Rigging and Maintenance Interface, Flight Control System
P/N: 462900GSE-1003
GSE P/N: GSE 062
Use: Performing flight control rigging on Phenom 300 aircraft.
Phenom 300 Pin, Rigging Kit
P/N: 462900GSE-1003
GSE P/N: GSE 062
Use: Performing flight control rigging on Phenom 300 aircraft.
Phenom DC Pump Cartridge Removal Tool
P/N: 500T05780
GSE P/N: GSE 040
Use: This tool is used to remove and install the fuel pump cartridge on Phenom model aircraft.
Phenom 100/300 Engine Download Kit
P/N: PWC69806
Contains Cables: PWC69810 (Download Adapter), PWC40712 (DCU Adapter), PWC62174 (Cable Extension), PWC73009 (Dual Channel RS422 To USB)
Use: DPHM Cables for PW535E and PW617F
Phenom 100/300 – AC Recovery, Recycle, Recharge – Unit
P/N: 34788
GSE P/N: GSE 050
Use: This Unit gives the ability to recharge the VCS.
28 Volt DC Power Cart
Model: UDC-28M
P/N: 198-12000-11
Use: Supply 28 volts and up to 600 amps DC power to aircraft.
115 Volt AC Power Cart
Model: JTP3S 90/480/RACK
P/N: 2914830.01BLU
Use: Supply 115 volts and up tp 90 KVA AC Power to aircraft.

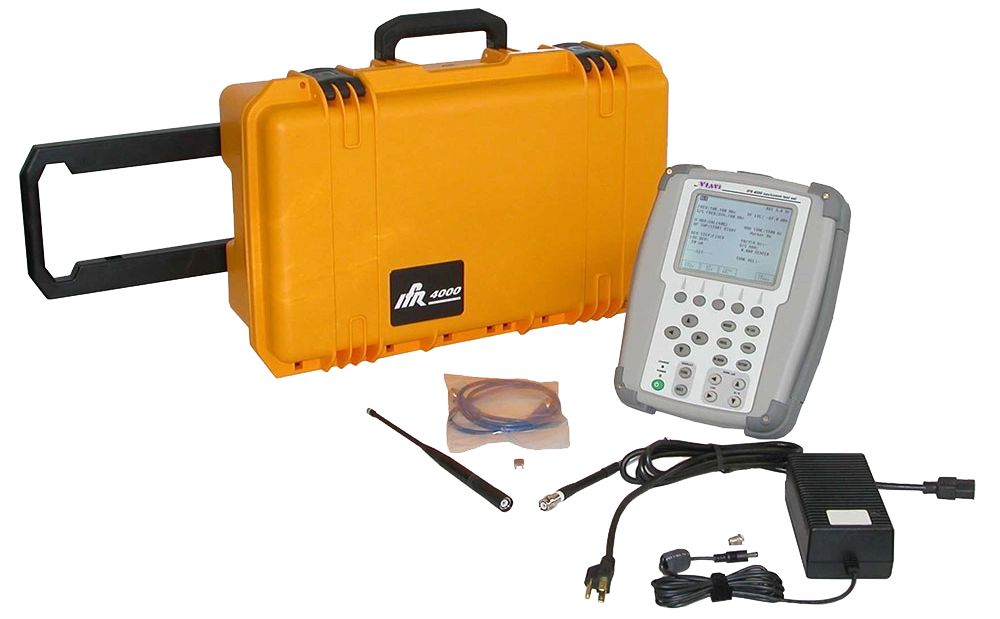

Aeroflex IFR 4000 Nav/Comm Flightline Test Set
P/N: IFR 4000 (Click here for more information)
Use: The IFR 4000 is a compact, lightweight and weatherproof unit designed for testing ILS, VOR, Marker Beacon and VHF/UHF communications avionics systems.
Options: Option 1 software installed (ELT Testing).
Video Borescope (4mm x 3m)
P/N: V3 040 3000 4 (Click here for more information)
GSE: Numerous
Use: Numerous
Includes: Hawkeye® V3 HD Video Borescopes simply deliver the best image quality of any borescope on the market today! The V3 HD features a new Micro HD video camera, (6X better resolution than the V2), 4-way articulation, HD daylight readable color touchscreen display, integrated adjustable LED illumination and WI-FI Connection. The V3 Deluxe Kit also includes the 90 degree tip, Close Focus Tip, Neck Strap, Tripod and extra battery.
3 Channel Pitot Static Test Set
P/N: DPST-9300A (Click here for more information)
Use: The Model DPST-9300A Automated RVSM / AOA-3 Channel Pitot Static Test Set is a fully automated flightline three (3) channel pressure controller, designed to provide regulated total (PT) pressure and static (PS) pressure outputs to simulate Altitude, Airspeed, and Vertical Speed parameters as well as AOA, Angle of Attack / 3 Channel Smart probe testing.
DART (DATA ACQUISITION RUGGEDIZED TOOL)
GSE: 31X−31−08
P/N: KGB750−001
Use: Used to download the CVR or FDR data.
Aircraft Hydraulic Mules (5606)
P/N: Numerous
Aircraft Hydraulic Mules (Phosphate Ester)
P/N: Numerous
Aircraft Hydraulic Mule (MIL-PRF-87257)
Model: 54101ZZ3C
Use: Set up for applying external hydraulic power on Phenom 300, CE680/CE680A, and CE700 aircrafts.
Robo-Mule 5000 Ground Hydraulic Power Stand
P/N: 13-6603-6000 (Click here for more information)
Use: Utilizes your aircraft hydraulic pump, filters, pressure regulator, and fluid to supply hydraulic system pressure to aircraft.
Permaswage Kit
P/N: DLTFRPSKT3001
GSE: N/A
Use: Contains -4,-6,-8,-10 and -12 heads. The Permaswage system is a tube connecting system that mechanically attaches a Permaswage fitting to a tube by radial swaging. The system is used to make permanent and separable connections between metal tubes. It works by deforming the metal fitting onto a tube radially, 360° around the circumference, using the Permaswage Lightweight Tool (DLT).
Compatibility : This tool is used on most aircraft makes and models. Common in hydraulic, pneumatic and fuel system tubing.
Aeroflex IFR 6000 Flightline Test Set
P/N: IFR 6000 (Click here for more information) (http://ats.aeroflex.com/avionics-test-products/identification-products/ifr-6000-flightline-test-set)
Use: The IFR 6000 is a compact, lightweight and weatherproof unit designed for testing transponder modes A/C/S, 1090 MHz ADS-B and 978 MHz UAT, TCAS I and II, and DME.
Avionics TDR
P/N: 6021-5154
USE: The Avionics TDR is used for locating faults in wire runs.
Aircraft 30 Ton Wing Jacks
P/N: 02-1240C0111 (Click here for more information)
Use: Used to wing jack aircraft
Aircraft 12 Ton Wing Jack
P/N: 02-1248C0112 (Click here for more information)
Use: Used to wing jack aircraft
Aircraft 10 Ton Wing Jacks
P/N: 02-1032C0111 (Click here for more information)
Use: Used to wing jack aircraft
Aircraft 5 Ton Wing Jacks
P/N: 02-7828C0110 (Click here for more information)
Use: Used to wing jack aircraft
Aircraft 12 Ton Wing Jacks
P/N: 02-1240C0111 (Click here for more information)
Use: Used to wing jack aircraft
Aircraft 5 Ton Wing Jack
P/N: 02-7827C0110 (Click here for more information)
Use: Used to wing jack aircraft
Aircraft 10 Ton Wing Jacks
P/N: 02A7815C0110 (Click here for more information)
Use: Used to wing jack aircraft
Aircraft 25 Ton Axle Jack
P/N 02-7830C0110 (Click here for more information)
Use: Used to axle jack aircraft
Aircraft 12 Ton Axle Jack
P/N 02-7813C0100 (Click here for more information)
Use: Used to axle jack aircraft
Aircraft 12 Ton Axle Jack
P/N 02-7863C0100 (Click here for more information)
Use: Used to axle jack aircraft
Aircraft 25 Ton Axle Jack
P/N: 02-7835C0100 (Click here for more information)
Use: Used to axle jack Global and Falcon Aircraft
Glenair Band-It Banding Tool
P/N: 600-058
Use: Used for banding wire shields to connector with metal bands
